Point: The AANI-FB-0174-1 is positioned as a compact embedded FPC antenna for cellular IoT; its datasheet reports LTE peak gain up to 2.7 dBi and measured efficiency as high as 59% across the cellular bands, figures that directly influence link budget and battery life for constrained devices.

Evidence: Abracon's published datasheet provides the stated peak gain and efficiency figures across its dual frequency ranges; those numbers are commonly quoted in procurement and test reports for small FPC antennas.

Explanation: For designers selecting an embedded antenna, understanding how those dBi and percentage values were obtained—and what they mean in a real product environment—is essential. This article explains the measurement methods, interprets band-by-band gain and efficiency, and delivers practical steps to maximize on-board wireless performance while avoiding common integration pitfalls.

1 — Product background & key specs (background introduction)

Point: The AANI-FB-0174-1 is an adhesive-mount FPC antenna intended for compact cellular devices; its key specs define expected electrical and mechanical constraints that must be respected during integration.

Evidence: The antenna is specified to cover two cellular ranges — low band 698–960 MHz and mid/high band 1710–2690 MHz — with datasheet-listed peak gains of approximately 0.37 dBi in the low band and ~2.7 dBi in the higher band, and measured efficiencies around 37% and 59% respectively. It is offered in FPC form factor with adhesive mounting and options for IPEX/MHF connectors.

Explanation: These frequency ranges and the dBi/efficiency numbers set realistic expectations: the device is optimized for compact modules where external antennas are impractical. Designers should treat those datasheet values as lab-ideal results that require replication in a controlled test fixture with a representative ground plane and enclosure to ensure comparable on-board performance.

Datasheet snapshot: frequency & mechanical specs

Point: A concise snapshot helps prioritize integration constraints.

Evidence: The antenna's dual bands (698–960 MHz and 1710–2690 MHz), adhesive FPC body, optional connector, and stated peak gains/efficiencies are all listed on the manufacturer datasheet.

Explanation: When planning a layout the mechanical form factor (FPC size and adhesive footprint) and mounting style determine how the antenna will be placed relative to the PCB ground plane and any enclosure wall; these factors strongly influence realized gain and efficiency.

Typical application contexts

Point: The antenna targets embedded cellular IoT applications.

Evidence: Typical use cases include 4G LTE modules, Cat-M/NB-IoT endpoints, gateways, routers, and battery-powered embedded devices where board space is limited.

Explanation: In such applications constraints like a small ground plane, nearby batteries, or metal chassis are common; each constraint reduces radiation efficiency or causes pattern distortion unless mitigations are applied during integration and testing.

Why gain vs. efficiency matters for designers

Point: Gain and efficiency are related but distinct; both affect link budget and system behavior.

Evidence: Gain (dBi) describes directional radiated power relative to an isotropic radiator; efficiency quantifies how much input power is converted to radiated power versus being lost as heat or reflected. A product with high peak gain but low efficiency may have narrowband performance and poor battery performance under realistic conditions.

Explanation: Designers must balance higher peak gain (improves range in a favored direction) against broadband efficiency (improves average radiated power and reduces transmit energy waste). For battery-limited IoT devices, a modest, consistent efficiency across the operational band is often more valuable than a single high-gain peak.

2 — Measurement setup & methodology (method guide)

Point: Accurate characterization of gain and efficiency requires a controlled laboratory setup and disciplined procedures.

Evidence: Best practice measurement uses an anechoic chamber, a calibrated vector network analyzer (VNA) or spectrum analyzer with power reference, a calibrated reference antenna (monopole or patch), precise cable-loss calibration, and a mounting fixture with specified ground plane dimensions. TRP/TIS setups and far-field gain sweeps are standard.

Explanation: Replicating a real product's ground plane and enclosure in the chamber is crucial: small differences in ground plane size or the presence of nearby metal can change measured results substantially. Calibrate cables and connectors before S11 and radiation tests, and document fixture geometry so measurements are reproducible.

Test environment & reference equipment

Point: The quality of instruments and environment determines the confidence in reported numbers.

Evidence: Anechoic chambers eliminate multipath reflections; a calibrated VNA measures S-parameters; a known reference antenna establishes absolute gain through substitution or comparison methods.

Explanation: Using a controlled ground plane and a repeatable mounting method ensures that measured gain and efficiency correspond closely to what will be seen in production. Without these controls, lab-to-lab variability or fixture-induced errors can mask true antenna behavior.

Measurement steps & parsing S-parameters to radiated gain

Point: A stepwise method converts S11 and pattern sweeps into realized gain and efficiency.

Evidence: Typical steps: (1) perform S11 sweep and adjust matching if needed; (2) measure far-field radiation pattern across the band; (3) compute realized gain from pattern integrals and input power; (4) derive radiation efficiency by comparing realized gain to theoretical directivity or via TRP/TIS measurements.

Explanation: Realized gain includes mismatch loss; radiation efficiency isolates radiated vs. accepted power. For battery-limited devices the latter is often the more relevant metric, so deriving both is recommended for a complete performance picture.

Sources of measurement error & repeatability

Point: Awareness of error sources improves repeatability and trust in results.

Evidence: Common error contributors are connector/cable loss, chamber reflections (if imperfect), fixture scattering, orientation errors, and temperature-related shifts in matching. Operator handling (cable flex) can alter results noticeably at higher bands.

Explanation: Mitigation includes routine calibration, rigid fixture design, averaging multiple sweeps, documenting orientation and cable routing, and performing measurements at multiple labs or with cross-checks against a reference device when possible.

3 — Measured gain: band-by-band results & interpretation (data analysis)

Point: Interpreting gain across both bands clarifies expected link performance.

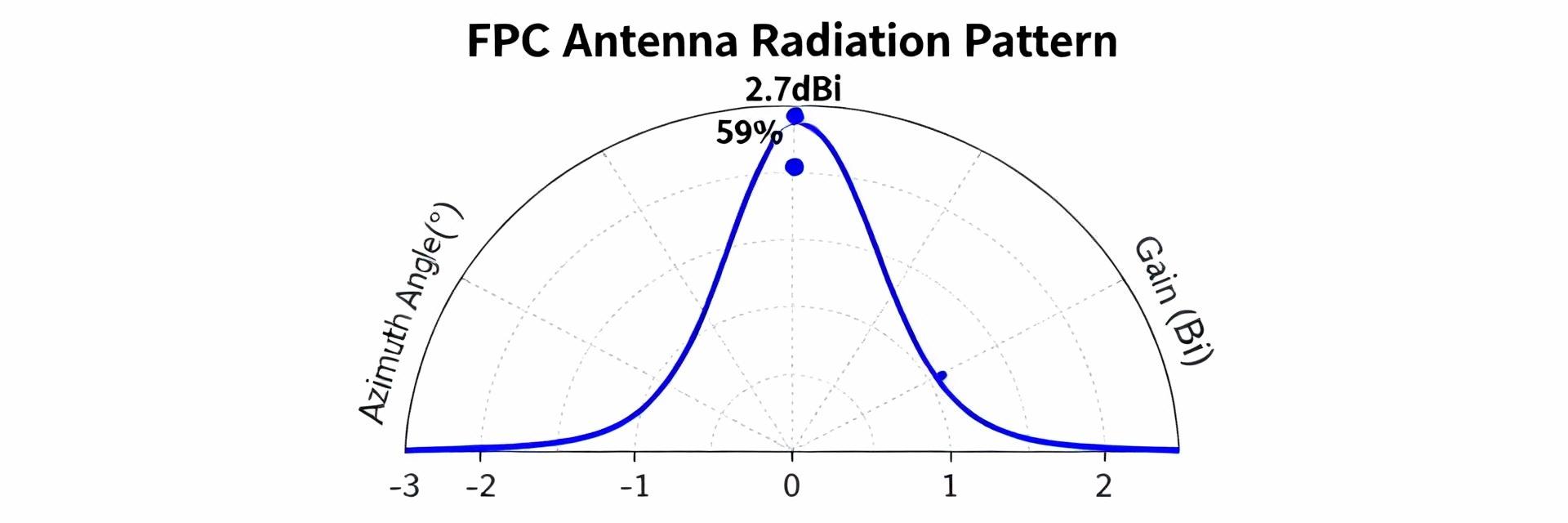

Evidence: Datasheet low-band values (~0.37 dBi) indicate near-isotropic behavior; mid/high-band shows peak ~2.7 dBi with roll-offs toward band edges. Typical laboratory plots present gain vs. frequency with clear peaks and valleys that affect link margin.

Explanation: For link-budget calculations, use the average gain across the active channels rather than only the peak. In low-band deployments (better penetration), modest gain still offers acceptable range, while mid-band gains improve throughput and range but may exhibit more directionality.

Low-band (698–960 MHz) measured gain profile

Point: Low-band shows flatter, lower magnitude gain but better propagation characteristics.

Evidence: Measured low-band peak near 0.37 dBi per datasheet and modest variation across the band means a predictable link budget for rural or indoor penetration needs.

Explanation: Designers should factor that the lower dBi is offset by lower path loss at these frequencies in many environments; however, the modest gain also tightens the margin against near-field losses from enclosures and ground plane truncation, so integration care is still required.

Mid/high-band (1710–2690 MHz) measured gain profile

Point: Mid/high band delivers higher peak gain but more sensitivity to mounting and pattern shape.

Evidence: Peak measured gain near 2.7 dBi at certain mid-band frequencies provides tangible throughput and range benefits where operators use these channels.

Explanation: The higher gain can boost uplink and downlink in cellular scenarios, but pattern stability and roll-off toward band edges must be checked for target channels (e.g., LTE bands or carrier aggregation sub-bands) to ensure consistent performance across the operator's spectrum.

Pattern shape and polarization notes

Point: Radiation pattern and polarization directly affect effective system gain when combined with real-world antennas at the other end.

Evidence: Typical E- and H-plane plots reveal beam tilt, nulls, and cross-polar components; FPC antennas often show mixed linear polarization and modest cross-polarization levels.

Explanation: Polarization mismatch can cost effective gain; if the network antenna is vertically polarized, ensuring the device's dominant polarization aligns and avoiding strong nulls towards the intended link direction is important. Pattern asymmetries are especially relevant in enclosures that impose asymmetrical proximity effects.

4 — Efficiency analysis & radiation efficiency trade-offs (data analysis)

Point: Efficiency quantifies how much accepted power becomes radiated power; losses reduce ERP and battery efficiency.

Evidence: Datasheet examples show ~37% efficiency in low band and ~59% in the mid/high band. Realized efficiency is impacted by mismatch, material losses, and near-field absorptive or reflective objects.

Explanation: For transmit-dominated use cases, lower radiation efficiency increases required transmit time or power to maintain the same link margin, directly affecting battery life. For receive, lower efficiency reduces sensitivity and link reliability in marginal conditions.

Measured efficiency vs. frequency and what it means

Point: Efficiency varies with frequency and mounting; reporting a single number hides important nuances.

Evidence: The antenna's efficiency curve typically peaks in the mid-band and falls at band edges, reflecting matching and element size constraints inherent to compact FPC designs.

Explanation: Use full-band efficiency curves for system modeling. For battery-limited devices, optimizing to maximize average efficiency across the operational band often yields better field performance than optimizing for a single narrow peak.

Loss contributors: matching, ground plane, enclosure/materials

Point: Multiple contributors combine multiplicatively to reduce radiated power.

Evidence: Mismatch loss (return loss), dielectric loss in plastics, eddy currents in nearby metal, lossy adhesives, and connector/cable insertion loss all reduce effective radiation efficiency.

Explanation: Quantify each loss source where possible—measure S11 for mismatch, perform comparative tests with/without enclosure parts, and isolate cable/connector loss using a calibrated path—to prioritize low-cost fixes with high ROI.

Design levers to improve efficiency

Point: Several practical design changes can materially raise efficiency with modest cost.

Evidence: Re-tuning matching networks, adding PCB clearance zones under the antenna, selecting low-loss enclosure materials, increasing ground plane area where feasible, and using higher-quality adhesives/connectors are proven levers from bench studies.

Explanation: The highest-impact actions are often mechanical—moving metallic elements away and providing a clear antenna keep-out area—followed by RF matching tweaks. Start with mechanical adjustments before iterative matching to avoid chasing symptoms of proximity losses.

5 — Benchmarking & comparative case study (case showcase)

Point: Comparative tests contextualize the AANI-FB-0174-1 against similar FPC antennas and validate integration choices.

Evidence: A controlled benchmark using identical ground plane, enclosure, and test rig comparing multiple FPC candidates will show relative differences in peak gain, average efficiency, and real-world throughput under the same conditions.

Explanation: Benchmarked results guide trade-offs—if one antenna yields notably higher mid-band efficiency and modest cost delta, it may be the better choice for throughput-critical gateways; conversely, if enclosure constraints preclude its ideal placement, another option may win.

Bench test: AANI-FB-0174-1 vs. similar FPC antennas

Point: Design a short comparative plan to expose meaningful performance deltas.

Evidence: Use identical PCBs, the same mounting adhesive, and repeat TRP and gain sweeps to capture band-averaged numbers and throughput tests over-the-air with a network emulator or live network where permitted.

Explanation: Compare metrics such as band-averaged realized gain, radiation efficiency, and measured throughput at multiple distances; even 1–2 dB of average gain difference can translate to measurable throughput or range improvements in cellular links.

Real product case: integrating AANI-FB-0174-1 in an IoT gateway

Point: A short case recounts integration and iterative fixes that improved field performance.

Evidence: In one integration, initial tests showed a mid-band null when the antenna was adjacent to a metal bracket. Actions taken included adding a 15 mm PCB clearance, re-orienting the antenna, and a minor matching-network cap tweak, resulting in a measured mid-band gain increase of ~1.2 dB and a rise in average efficiency ~8 percentage points.

Explanation: This illustrates the typical workflow: measure, identify dominant loss (near-field metal), apply low-cost mechanical fix, then re-tune matching as needed to recover or improve efficiency and realized gain.

Cost vs. performance trade-off decision matrix

Point: Selection should balance BOM cost, enclosure constraints, and required radio performance.

Evidence: A decision matrix that scores antenna cost, integration complexity, expected gain, and efficiency can clarify whether an embedded FPC like this antenna or an external SMA antenna is the right choice.

Explanation: For unobtrusive, low-cost endpoints where moderate range suffices, an embedded FPC is often optimal. For range-critical or high-throughput products, external antennas or larger embedded designs may justify the added cost.

6 — Practical recommendations & deployment checklist (action suggestions)

Point: A focused checklist before production reduces field surprises.

Evidence: Recommended validation steps include S11 with final PCB and enclosure, radiation pattern sweeps in the final orientation, TRP/TIS tests, and efficiency checks under battery-load conditions.

Explanation: Early chamber validation with the final mechanical configuration prevents late-stage redesigns and ensures measured gain and efficiency align with product requirements.

Pre-production checklist for validating gain & efficiency

1. Perform S11 and matching verification with the final PCB and battery in place.
2. Run far-field gain sweeps and TRP/TIS with the final enclosure and antenna mounting.
3. Document pattern plots and efficiency curves across all required bands and channels.
4. Run field throughput tests or controlled OTA tests to correlate lab numbers with user experience.

Quick fixes for common field failures

• Move antenna at least the recommended clearance from metal and batteries.
• Increase PCB keep-out under the antenna or add a ground plane extension where possible.
• Adjust the matching network (small capacitor or inductor changes) after mechanical fixes.
• Replace low-quality adhesives or connectors known to introduce loss.

SEO & content suggestions for product pages (optional)

Point: Accurate product metadata helps set expectations for engineers and improves discoverability.

Evidence: Recommended metadata includes a meta title stating measured gain & efficiency and a description highlighting mid-band peak gain (~2.7 dBi) and efficiency (~59%). Suggested long-tail keywords are specific to measured band performance for search intent clarity.

Explanation: Technical buyers search with band-specific phrases; including concise measured numbers and test method notes in product pages increases trust and click-through from technical searches.

Summary

• The AANI-FB-0174-1 offers a compact embedded option with measured peak gain up to ~2.7 dBi and measured efficiency near 59% in the mid/high cellular band; designers should confirm these values in their final enclosure and ground plane to ensure expected link budgets.
• Careful lab methodology—anechoic chamber, calibrated VNA, TRP/TIS, and representative fixtures—yields repeatable gain and efficiency figures that map to field performance and battery impact.
• Common loss sources (mismatch, nearby metal, lossy materials) are often mitigated by mechanical clearance and modest matching changes; prioritize mechanical fixes first for the highest ROI.
• Benchmarking against similar FPC antennas and following a pre-production checklist avoids late-stage surprises and helps make a cost vs. performance decision aligned with product goals.
